Most rolling benches fail for one of two reasons: the casters are too small, or the frame racks under sideways load. A bench on four 2-inch plastic wheels stops dead at every extension cord and shifts every time you plane an edge. These mobile workbench plans fix both problems with a 4-inch locking caster on each corner and a plywood torsion box that resists twist better than a heavy hardwood frame of the same weight.

The finished bench is 60 inches long, 24 inches deep, and roughly 36 to 38 inches tall including pads and casters (30-inch legs plus the 1-1/2 inch top, doubled pads and 4-inch casters). That puts the top near the wrist for many people standing flat, which is where hand planing and assembly work feel best, and you can trim the legs to fit your own height. Because portable table saw beds differ by several inches, measure your saw before you cut the legs if you want the bench to double as an outfeed table. Everything comes out of two sheets of 3/4-inch plywood and a handful of 2x4s.

As an Amazon Associate we earn from qualifying purchases at no extra cost to you.

#1 Pick

WORKPRO 48" Adjustable Workbench with Wheels, Rubber Wood Top | Garage Workbench with Power Outlets, 1000 LBS Stationary Load Capacity, Mobile Workstation for Garage, Workshop

Check Price on Amazon →

#2 Pick

How to Make Workbenches & Shop Storage Solutions: 28 Projects to Make Your Workshop More Efficient from the Experts at American Woodworker (Fox Chapel Publishing) Torsion Boxes, Outfeed Tables, & More

Check Price on Amazon →

#3 Pick

Woodcraft Project Paper Plan to Build Classic Workbench – Material Not Included

Check Price on Amazon →

#4 Pick

Woodcraft Project Paper Plan To Build Crosscut Station And Lumber Rack – Material Not Included

Check Price on Amazon →

#5 Pick

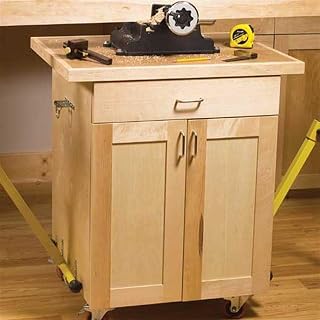

Woodworking Project Paper Plan to Build 3 Mobile Carts – Material Not Included

Check Price on Amazon →

#6 Pick

Workbenches Revised Edition: From Design & Theory to Construction & Use

Check Price on Amazon →

#7 Pick

My First Project: Easy-to-Build Woodworking Plans for Beginners

Check Price on Amazon →

#8 Pick

Woodcraft Project Paper Plan To Build Mobile Potting Table – Material Not Included

Check Price on Amazon →

Materials, Cut List and What These Mobile Workbench Plans Cost

Buy plywood, not OSB. You want a face that stays flat and takes a screw near the edge without blowing out. Birch or maple plywood is the nice version; sanded pine plywood or a good grade of BCX works fine and saves real money. Skip anything with visible core voids on the edge, because voids are where your screws lose their grip.

Total plywood: two sheets of 3/4-inch for the top, shelf and aprons, plus offcuts for pads. One 8-foot 2×4 yields two legs with waste, so buy three. Add roughly 100 2-1/2 inch construction screws, 8 lag screws or 5/16-inch bolts for the top, a quart of wood glue, and the casters, which are usually the single biggest line item on the receipt.

Updated October 2026 – checked the dimensions, caster ratings and fastener sizes below against current published caster and plywood specifications.

Tools You Need for These Mobile Workbench Plans

You can build this bench with a circular saw, a drill and a handful of clamps; a table saw only makes repeat cuts faster. Gather these before you start so you are not stopping mid-glue-up.

• Circular saw with a straightedge guide, or a track saw, for breaking down the plywood sheets
• Miter saw or crosscut jig with a stop block, so all eight aprons come out identical
• Drill/driver with a 1/8-inch bit for pilot holes and a countersink bit
• Four or more 24-inch clamps plus a 4-foot bar clamp or two for the top glue-up
• Speed square, tape measure and a 4-foot level to check the finished top
• Socket set for the lag screws or bolts, and a random orbit or block sander

How Tall Should a Rolling Workbench Be?

Most people are comfortable with a top between 34 and 38 inches high, and the right number is your wrist crease measured standing relaxed. Lower suits heavy hand planing; higher suits assembly, electronics and detail work.

Work backward from that number. Subtract the top thickness (1-1/2 inches here), the doubled caster pads (1-1/2 inches) and the overall caster height (about 5 inches for a 4-inch wheel with its plate), and the remainder is your leg length. A 36-inch target gives a leg of roughly 28 inches; the 30-inch legs in the cut list land nearer 38 inches. If the bench will also serve as an outfeed table, set the finished height 1/8 to 1/4 inch below your saw table instead of using wrist height.

Step 1: Break Down the Sheets and Square Everything

Cut the sheets to rough size with a circular saw and a straightedge before you touch a table saw. Full sheets are awkward and unsafe to feed alone, and a rough cut 1/2 inch oversize lets you take a clean final pass later. Set your circular saw depth so the blade projects about 1/4 inch past the plywood, which reduces tearout on the underside and keeps the blade from wandering.

Then trim to final dimensions. The single most important cuts are the four long aprons and the four end aprons. If those eight pieces are not identical in length, the base will not be square and the bench will rock no matter how carefully you set the casters. Cut them with a stop block on your miter saw or crosscut sled and do not measure each one individually.

Check your first assembled rectangle by measuring both diagonals. When those two numbers match within 1/16 inch, the frame is square. Chasing that with a clamp across the long diagonal is far easier than fixing it after the screws are in.

Step 2: Assemble the Base as Two Ladders

Build the two long sides first, flat on the floor. Each side is two legs plus two long aprons: one apron flush with the top of the legs, one apron set so its bottom edge sits 4 inches up from the leg bottoms. That gap gives you toe clearance and keeps the lower shelf out of the sawdust that piles against a baseboard.

Glue and screw the aprons to the outside faces of the legs. Outside faces matter here. Screws in shear through a lapped joint are strong, and putting the apron on the outside gives you a continuous surface to clamp work against. Predrill with a 1/8-inch bit anywhere within 2 inches of an end, especially in plywood aprons where a screw will happily split the plies.

Stand the two ladders up, clamp the end aprons in place, verify the diagonals again, then fasten. You now have a base that will support hundreds of pounds vertically but still flexes side to side. That comes next.

Step 3: Add the Shelf and Kill the Racking

Drop the 20 x 50 inch shelf onto the lower aprons, glue it down, and screw it every 8 inches. This is the step people skip, and it is the reason their bench sways. A glued sheet of plywood spanning the full footprint turns four independent legs into a single box. It is worth more structurally than adding diagonal braces, and it gives you storage instead of shins.

If you want a fully enclosed base later, add a plywood panel to one end and the back. Leave the front and one end open so you can still reach a clamp or a dust hose without crawling.

Step 4: Build the Top and Mount It

Glue the two 3/4-inch skins face to face for a 1-1/2 inch top. Spread glue with a notched spreader or a scrap of plywood, then clamp with weight in the field, not just around the perimeter. A stack of paint cans, a few gallon jugs, or your own toolboxes across the middle works. Any gap in the glue line becomes a soft spot that dents under a mallet.

Wrap the edges with 3/4-inch hardwood, 1-1/2 inches wide, so the finished edge stands proud of nothing and protects the plies from chipping. Apply the long pieces first, then the ends, so the visible end grain is minimized on the sides you look at most.

Sand the top with 80 grit to flatten any glue squeeze-out and level the edging, then 120 grit, and stop. Do not go past 150. A slick top lets workpieces slide when you plane or sand, and a bench top is a working surface, not furniture. Finish with two thin coats of wipe-on oil or a 50/50 mix of boiled linseed oil and mineral spirits. Skip film finishes like polyurethane, which glue squeeze-out will peel off in sheets.

Attach the top with lag screws through the upper aprons into the underside, or with pocket screws from inside. Do not glue the top to the base.

Step 5: Mount the Casters Correctly

Double up 3/4-inch plywood pads and glue them to the bottom of each leg so the caster plate has 1-1/2 inches of material to bite into. Screwing a caster plate into the end grain of a 2×4 leg is the classic failure point, because end grain holds screws poorly and the plate works loose under rolling load.

Position each caster plate so the swivel arc stays inside the footprint of the bench. If the wheel can swing outside the base, the bench will tip when you push it over a threshold. Use bolts with washers and nuts rather than screws if the caster plate has through-holes; a bolted caster will outlast the bench.

• ✔ Torsion-box top plus glued shelf resists racking better than a heavier frame
• ✔ Rolls over cords and slab joints on 4-inch wheels
• ✔ Top is unglued, so you can flip or resurface it later
• ✔ Cut list comes out of two sheets and three 2x4s

• ✘ Casters are the most expensive part and cheap ones ruin the build
• ✘ At roughly 130 pounds it is heavy to move up stairs
• ✘ Not stiff enough for heavy hand planing unless you lock all four casters

Retractable Casters and Torsion Bar Options for a Rolling Wood Workbench

Retractable casters and torsion bar systems let a heavy bench sit solid on the floor and roll only when you want it to. They cost more and add more work than fixed locking casters, so most shops only need them for benches that take hard planing or hammering.

• Fixed all-locking casters: simplest and cheapest; lock all four before heavy work. Best for the plan above.
• Drop-down (retractable) casters: a lever or foot pedal lowers wheels below the legs, and the bench rests on its feet when released. Needs extra frame height and a stiffer leg-to-apron joint.
• Torsion bar or linked-pedal systems: one pedal lifts or locks two or four wheels together. Check that the bar clears your lower shelf before you commit.
• Leveling feet with fixed wheels: wheels on one end only, lifting the other end onto feet like a wheelbarrow. Works for narrow benches you tilt to move.

Whichever you choose, the rating matters more than the mechanism. Add up the bench weight (about 130 pounds here), your heaviest tool and your stored material, then choose casters whose combined rating is at least double that number.

Plans for Individual Workbenches That Attach to Each Other

To make rolling benches that attach to each other, build them all to the same height and width and join them with bolts or removable cleats, never glue. Matching the top height to within 1/16 inch is the whole job.

1. Build every unit with the same leg length and the same caster model so the tops stay level on the same floor.
2. Clamp two benches side by side and drill 3/8-inch holes through the adjoining end aprons, two per joint.
3. Join with carriage bolts, washers and wing nuts so you can separate the benches in a minute.
4. Lock the casters on the outer corners and keep the adjoining ones free to align.

Leave a hair of gap, about 1/16 inch, between tops so they do not jam in humid weather.

How to Resurface a Mobile Work Bench Top

To resurface a mobile workbench top, flatten it with a card scraper or sander, then re-oil it; you do not need to rebuild anything. Because the top in these plans is bolted on rather than glued, you can also flip it over to get a fresh face.

1. Unscrew the top, flip it and check which side is flatter.
2. Plane or scrape glue and dents flat, then sand with 80 grit and 120 grit only.
3. Fill deep gouges with epoxy or wood filler and sand flush.
4. Wipe on a fresh coat of oil, let it cure and remount with the same lag screws.

Common Mistakes

Using 2-inch casters. Small wheels catch on every cord, dust hose and floor crack. A 4-inch wheel rolls over a 3/4-inch obstacle without help.

Skipping the glued lower shelf and relying on screws alone. Screws in a rectangle do not stop racking. A glued sheet does.

Building the top at 30 inches or 36 inches because a plan online said so. Measure to your own wrist crease standing relaxed, then subtract the caster and top thickness from that number when you cut legs.

Sanding the top to 220 grit. It looks great for a week and fights you every day after.

Mounting casters directly to leg end grain. Add the pads.

Can You Build a Mobile Stand for a Band Saw or Benchtop Tool?

Yes. For a 9-inch benchtop band saw, size the top to the tool base plus about 4 inches on every side, and bolt the tool down through the top.

Keep the bench heavy enough that the tool cannot tip it, and use locking casters on all four corners while the saw runs. Cut an opening or add a plywood riser if the base sits low, and check the saw manual for its weight and mounting hole pattern before you drill. A shop-vac port or a bin under the saw catches sawdust without extra work.

Mobile Workbench Plans Cost and Build Time

Free plywood-and-2×4 plans are common; paid plans mostly add cut diagrams and drawer details.

Mobile Workbench Plans FAQ

How much weight will this bench hold? The limit is the casters, not the wood. Four casters rated 300 pounds each give a nominal 1,200 pound capacity, and the plywood top and glued base will not be the weak link at normal shop loads. Static rating on casters is usually higher than rolling rating, so check the label if you plan to park a heavy machine on it permanently.

Can I use this as a table saw outfeed table? Yes, if you cut the legs so the finished top lands 1/8 to 1/4 inch below your saw table. Measure your specific saw before cutting legs, since portable and cabinet saw heights differ by several inches. Trimming a leg later is a nuisance; cutting it right the first time is not.

Do I need a table saw to build it? No. A circular saw with a straightedge guide handles every cut in the list, and a track saw makes it easier. What you do need is a way to cut identical lengths repeatedly, which means a stop block on a miter saw or a simple crosscut jig.

Build the base first, live with it for a week, then decide whether you want a vise, dog holes on a 3-inch grid, or a drawer bank underneath. Most people discover they wanted different things than they expected once the bench is actually rolling around the shop.
